Cummins Onan Portable Generator
Working on an off-grid project? Planning a family campout? Has an unexpected power outage left you powerless?
Reliable backup power is now in your hands.
When and Where You Need It Most
Designed to go wherever you do. Cummins portable generators are engineered to meet the highest standards. Stay connected in the RV, camping, on the job, or when the power goes out at home.
Key Features
- Neighbor-Friendly, Quiet Operation (as low as 52 dBA)
- Remote Start with Push Button and Pullcord Backup
- OHV 4-Stroke Engine
- Dual-Fuel (Propane/Gasoline) Option
- LED Display
- 3-Year Residential Warranty/ 1-Year Commercial Warranty
- Wheels & Handle for Easy Transportation
- Dust Covers for Outlets Keep Them Clean
Save Fuel & Run Longer
The super efficient Cummins OHV 4-Stroke engine is a masterpiece of engineering. Save fuel and run your generator for longer. At 25% load, the P9500df gets 16 hours of run time using gasoline and 8 hours using propane. While the P4500iDF runs for up to 15 hours.
Dual Fuel Advantage
The dual-fuel setup of the P9500df and the P4500iDF gives you a major advantage in an emergency. Propane (LPG) has a much longer shelf life than gasoline which means you can store it so you’re always prepared. Run it on propane or gas with the flip of a switch.
Remote Start
Turn on your Onan portable generator from 100 yards away with the included remote starter and get instant power, wherever you are. Or use the push button or backup pull cord.
Super Quiet
Cummins Onan portable generators feature double-insulated housing to keep your camping neighbors happy with an operating sound as quiet as 52 dB.
Easy Monitoring
The LED display makes it easy to monitor the remaining run time, power output, fuel level, voltage, and lifetime run hours.
Lightweight & Easy to Carry
Super advanced power in a lightweight, easy-to-carry package. The P9500df, P4500iDF, and P4500i all include wheels and a telescopic handle. Portable power is now easy to take anywhere.
Get dependable power when you need it with the Cummins Onan Portable Generator.
Order Your Cummins Onan Portable Generator Now.
Still need help choosing which Onan Portable Generator is right for you?
Call to speak with an expert. 854-777-0909 (M-F 9a-5p CST) or
email us at sales@lakehouseandcottage.com
Product Specifications
Specs | P9500df | P4500iDF | P4500i | P2500i |
---|---|---|---|---|
AC Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
AC Voltage | 120/240 Volts | 120 Volts | 120 Volts | 120 Volts |
Dimensions | 26.25"x27.25"x26.25" | 20.5"x25.5"x18.12" | 20.5"x24.5"x18.25" | 18.25"x19.75"x10.5" |
Battery Included | Yes | Yes | Yes | Yes |
Dry Unit Weight | 194 lb. | 105 lb. | 98 lb. | 48 lb. |
Engine RPM Max | 3600 | 3600 | 3600 | 5500 |
Fuel Type | Propane or Unleaded Gasoline, 10% Ethanol or less | Propane or Unleaded Gasoline, 10% Ethanol or less | Unleaded Gasoline, 10% Ethanol or less | Unleaded Gasoline, 10% Ethanol or less |
Gasoline Peak Amps | 79A @ 120V/39A @ 240V | 37.5 amps | 37.5 amps | 20.8 amps |
Gasoline Peak Watts | 9500 | 4500 | 4500 | 2500 |
Gasoline Running Amps | 62.5A @ 120V/31A @ 240V | 30.8 amps | 30.8 amps | 18.3 amps |
Gasoline Running Watts | 7500 | 3700 | 3700 | 2200 |
Gasoline Fuel Gauge | Yes | - | - | - |
GFCI Outlets | Yes | No | No | No |
Operational Volume (dBA) | As low as 74 dBA | As low as 52 dBA | As low as 52 dBA | As low as 52 dBA |
Overload Protection | Yes | Yes | Yes | Yes |
Propane Peak Watts | 8550 | 4050 | 4050 | - |
Propane Running Amps | 56 @ 120V/28A @ 240V | 3330 | - | - |
Propane Running Watts | 6750 | - | - | - |
DC Voltage | - | 5 Volts | 5 Volts | 5 Volts |
Horse Power | 13 HP | 7.3 HP | 7.3 HP | 3.4 HP |
Economy Switch Mode | - | Yes | Yes | Yes |
Fuel Tank Capacity | 6.6 gal. | 3.4 gal. | 3.4 gal. | 1 gal. |
Remote Start Distance | 109 yd. (100 m.) | 109 yd. (100 m.) | 109 yd. (100 m.) | 109 yd. (100 m.) |
Battery Charger Included | Yes | Yes | Yes | Yes |

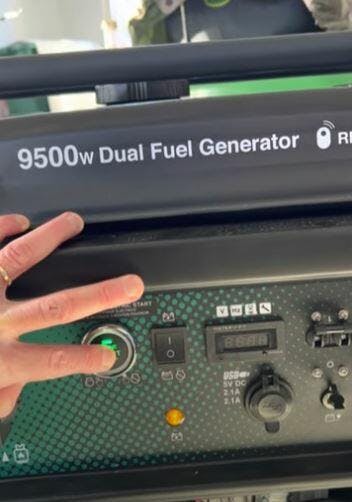

Onan P9500df Dual-Fuel Generator
• Transfer switch ready with L14-30R twist lock outlet
• Remote start with push button and pullcord backup
• Battery charging port with charger included
• Wheels and flip-up handle for easy transportation
• 16 hours of run time at 25% load using gasoline
• 8 hours of run time at 25% using propane
• Fuel gauge on top of 6.6-gallon tank
• Dependable 13 hp 420cc OHV 4-Stroke engine
• 3-Year Residential Warranty/ 1-Year Commercial Warranty
• Dust covers for outlets keep them clean
• LED Display shows volts, frequency, and lifetime hours
• AC Outlets: (1) 120/240V 30A (L14-30R), (2) Duplex 120V 20A GFCI (5-20R)
Onan P4500iDF Dual-Fuel Inverter Generator
• Remote start with push button and pullcord backup
• Quiet operation due to double insulation
• Wheels and telescoping handle for easy transportation
• 12.5 hours of run time at 25% load - Gas
• 15 hours of run time at 25% load - Propane
• Dependable 224cc OHV 4-Stroke engine
• 3-Year Residential Warranty/ 1-Year Commercial Warranty
• Dust covers for outlets keep them clean
• LED Display
• Neighbor-friendly, quiet operation (as low as 52 dBA)
• AC Outlets: (1) 120V 30A (TT-30R), (1) Duplex 120V 20A (5-20R)
• DC Outlets: (2) 5V USB ports
Onan P4500i Inverter Generator
• Remote start with push button and pullcord backup
• Quiet operation due to double insulation
• Wheels and telescoping handle for easy transportation
• 18 hours of run time at 25% load
• Dependable 7.3 HP 224cc OHV 4-Stroke engine
• 3-Year Residential Warranty/ 1-Year Commercial Warranty
• Dust covers for outlets keep them clean
• LED Display
• Neighbor-friendly, quiet operation (as low as 52 dBA)
• AC Outlets: (1) 120V 30A (TT-30R) (1) Duplex 120V 20A (5-20R)
• DC Outlets: (2) 5V USB ports
Onan P2500i Inverter Generator
• Built-in carry handle
• 2500 peak watts/2200 running watts
• Reliable 3.4 HP 98cc OHV 4-Stroke engine
• LED Display
• (2) 5V USB ports, (1) 12V 8A outlet, (1) Duplex 120V 20A 5-20R outlet
• Dust covers for outlets keep them clean
• 3-Year Residential Warranty/ 1-Year Commercial Warranty
• Neighbor-friendly, quiet operation (as low as 52 dBA)
• Lightweight: 48 lbs
FAQ
What maintenance is required for Cummins Onan Generators?
Regular maintenance is crucial for optimal generator performance. This includes oil and filter changes, air filter inspection, and spark plug checks. Consult your generator's manual for a detailed maintenance schedule.
How do I troubleshoot common generator issues?
Cummins Onan generators are designed with user-friendly features, and troubleshooting guides are provided in the product manuals. Common issues may include fuel problems, battery issues, or low coolant levels.
Can I use my Cummins Onan Generator during extreme weather conditions?
Cummins Onan Generators are designed to operate in a wide range of environmental conditions. However, it's essential to follow the recommended operating guidelines provided in the user manual. Extreme weather conditions may require additional precautions, such as proper ventilation or cold weather kits.
Can I parallel two Cummins Onan Generators for increased power output?
Yes, some Cummins Onan generator models (P2500i, P4500i, P4500iDF) are parallel-ready, allowing you to connect and synchronize two generators for increased power capacity.
How loud are Cummins Onan Inverter Portable Generators?
Cummins Onan Inverter Portable Generators are designed with noise reduction features, making them relatively quiet during operation. The operational volume is as low as 52 dB in all models (except the P9500i, which is as low as 74 dB. These generators are engineered to operate at lower noise levels, providing a quieter and more user-friendly experience compared to traditional generators.
Videos and PDFs
Warranty
Portable Generator
This limited warranty applies to Cummins Inc. branded Portable Generators hereinafter referred to as "Product".
This warranty covers any failures of the Product, under normal use and service, which result from a defect in material or factory workmanship. These portable generators are not intended to be used as a main/primary source of power in place of utility power. This application could void the warranty.
Warranty Period:
3-Year Residential Warranty/ 1-Year Commercial Warranty
The limited warranty start date is the date of purchase of Product to the first retail purchaser (date of purchase). If proof of purchase is not available to establish the purchase date, the date of Cummins ship date as recorded by Cummins Inc. will start the product warranty period.
Consumer Application is defined as usage by the purchaser for personal residential household or recreational use. Consumer Application is defined as usage by the purchaser for income producing, business related use. Once a Product has been used for income producing and business-related purposes, it shall thereafter be considered as commercial application.
This product is not recommended for and Is NOT warranted for the use to power Medical and Life Support equipment or devices. This warranty does not apply to generators used for Prime Power (primary source of power) in place of utility power where utility power service is present or where utility power service does not normally exist, regardless of whether a Consumer Application or Commercial Application is involved.
This warranty does not apply to generators used for demonstration purpose. Replacement generator sets installed as part of warranty repair under warranty coverage period assumes the remainder of the Product warranty coverage period.
Warranty coverage is transferable to subsequent owners.
Cummins Inc. Responsibilities:
In the event of a failure of the Product during the warranty period due to defects in material or workmanship, Cummins Inc. will only be responsible for the following costs:
Consumer Application:
Year 1
- Parts and Labor required to repair or replace the Product.
Year 2&3
- Parts will be covered
Commercial Application:
Year 1
- Parts and Labor required to repair or replace the Product.
Owner Responsibilities:
The owner will be responsible for the following:
- Providing evidence of the date of sale.
- Notifying Lakehouse & Cottage within 30 days of the discovery of failure
- Installing, operating, commissioning and maintaining the Product in accordance with Cummins Inc.’s published policies and guidelines.
- Should you require assistance or have questions, please call us at 854-777-0909.
- To ensure trouble free warranty coverage it is important that you register your Cummins generator. For help registering your product email sales@lakehouseandcottage.com or call 854-777-0909 or fill out the warranty registration card supplied with your generator.
In addition, the owner will be responsible for:
- Incremental costs and expenses associated with Product removal and reinstallation resulting from non-standard installations.
- Costs associated with rental of generator sets used to replace the Product being repaired.
- Costs associated with labor overtime and premium shipping requested by the owner.
- All downtime expenses, fines, all applicable taxes, and other losses resulting from a warrantable failure.
- Living and travel expenses.
- Telephone or other communication expenses.
Limitations:
This limited warranty does not cover Product failures resulting from:
- Inappropriate use relative to designated power rating.
- Inappropriate use relative to application guidelines.
- Normal wear, rust, corrosion and varnished fuel system components.
- Improper and/or unauthorized installation.
- Owner’s or operator’s negligence, accidents or misuse.
- Lack of, late or improper maintenance practice or improper repair.
- Use of improper or contaminated fuels, coolants or lubricants.
- Operation without adequate coolant or lubricants.
- Owner’s delay in making Product available after notification of potential Product problem.
- Use of add-on, modified or replacement parts and accessories not authorized by Cummins Inc.
- Noncompliance with any Cummins Inc. published guideline or policy.
- Improper storage, starting, and break-in practice.
- Damage to parts, fixtures, housings, attachments and accessory items that are not part of the generator set.
This limited warranty does not cover costs resulting from:
- Difficulty in gaining access to the Product.
- Repair of cosmetic damage such as paint, decals, etc. Please contact us at sales@lakehouseandcottage.com or 854-777-0909 for clarification concerning these limitations.
CUMMINS INC. RIGHT TO FAILED COMPONENTS:
Failed components claimed under warranty remain the property of Cummins Inc.
Cummins Inc. has the right to reclaim any failed component that has been replaced under warranty.
THE WARRANTIES SET FORTH HEREIN ARE THE SOLE WARRANTIES MADE BY CUMMINS INC. IN REGARD TO THE PRODUCT. CUMMINS INC. MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, OR OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT IS CUMMINS INC. LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This limited warranty shall be enforced to the maximum extent permitted by applicable law. This limited warranty gives the owner specific rights that may vary from state to state or from jurisdiction to jurisdiction.
Shipping
Processing Times
All orders are typically processed within 1-2 business days.
Product ETA is 5-7 business days.
Please note, we do not process shipments on weekends or public holidays. During high order volumes, there may be a slight delay; please allow extra transit time. If a significant shipping delay occurs, we'll notify you via email you provided.
Refunds and Returns
The manufacturer does not allow returns on this item. However, if your product was damaged in shipping, or you received the wrong part please contact us at sales@lakehouseandcottage.com or 854-777-0909 and we will take care of things for you to make it right.
The warranty covers any failures of the product, under normal use and service, which result from a defect in material or factory workmanship.
